The MRVA algorithm

Multi-scale variational analysis: one field fitted from the basin scale down to a few kilometres, on a B-spline basis.

The idea

Rather than interpolating observations directly, MRVA solves for the coefficients of a smooth field that best fits every observation at once, subject to a smoothness penalty. It does this repeatedly at a ladder of resolutions — coarse first, then progressively finer — with each scale correcting the residual left by the one above it.

This matters because the observing system is heterogeneous. A microwave radiometer sees through cloud at roughly 25 km; an infrared imager resolves a kilometre but only in clear sky; a buoy is a single exact point. Fitting them all at a single resolution would either throw away the fine detail or over-fit the sparse instruments. Solving scale by scale lets each instrument contribute only at the scales it can actually resolve.

Algorithm overview

Conceptual Framework

MRVA solves the SST analysis problem as a constrained optimization that balances two competing objectives:

Minimize: J = J_data + J_smooth

    Where:
      J_data   = weighted sum of squared residuals against observations
      J_smooth = smoothness penalty (thin-plate regularization)

The solution is represented using cubic B-spline basis functions:

SST(x,y) = Σ c_ij * B_i(x) * B_j(y)

Where:

• c_ij are coefficient values (the unknowns to solve for)
• B_i(x), B_j(y) are cubic B-spline basis functions
• The summation is over all grid points at a given scale

Key Features

1. Multi-scale hierarchy: Process from coarse (L=2, ~1250km) to fine scales (L=11, ~2.5km)
2. Variational formulation: Optimal balance between data fidelity and smoothness
3. Spline representation: Continuous field with local support (smooth interpolation)
4. Adaptive weighting: Scale-dependent data influence prevents aliasing
5. Temporal decay: Recent observations weighted more heavily
6. Latitude correction: Accounts for spherical geometry (anisotropic smoothing)
7. Multi-sensor fusion: Combines satellite, in-situ, and ice data

Why Multi-Scale?

Processing in a coarse-to-fine hierarchy provides several advantages:

• Computational efficiency: Solve on coarse grids first (fewer unknowns)
• Convergence: Initialize fine scales with coarse-scale solution
• Physical consistency: Large-scale features constrain small-scale details
• Data fusion: Use coarse sensors at large scales, high-res sensors at fine scales
• Gap filling: Coarse scales provide background where fine-scale data is sparse

B-spline basis functions

What are B-splines?

B-splines are purely mathematical basis functions—they have no inherent connection to temperature or ocean physics. They provide a smooth, local "building block" for representing continuous fields.

Unlike Fourier analysis (which uses many different basis shapes—sin(x), sin(2x), sin(3x), etc.), MRVA uses a single basis function shape: the cubic B-spline. Copies of this one function are placed at each point on a coefficient grid, and the SST field is reconstructed as their weighted sum:

SST(x,y) = Σ c_ij · B(x - x_i) · B(y - y_j)

Where:

• c_ij are the coefficient values at coefficient grid point (i,j) — the unknowns we solve for
• B(t) is the single cubic B-spline function, evaluated at distance t from the center
• x_i, y_j are the coefficient grid positions where B-splines are centered

Key Properties

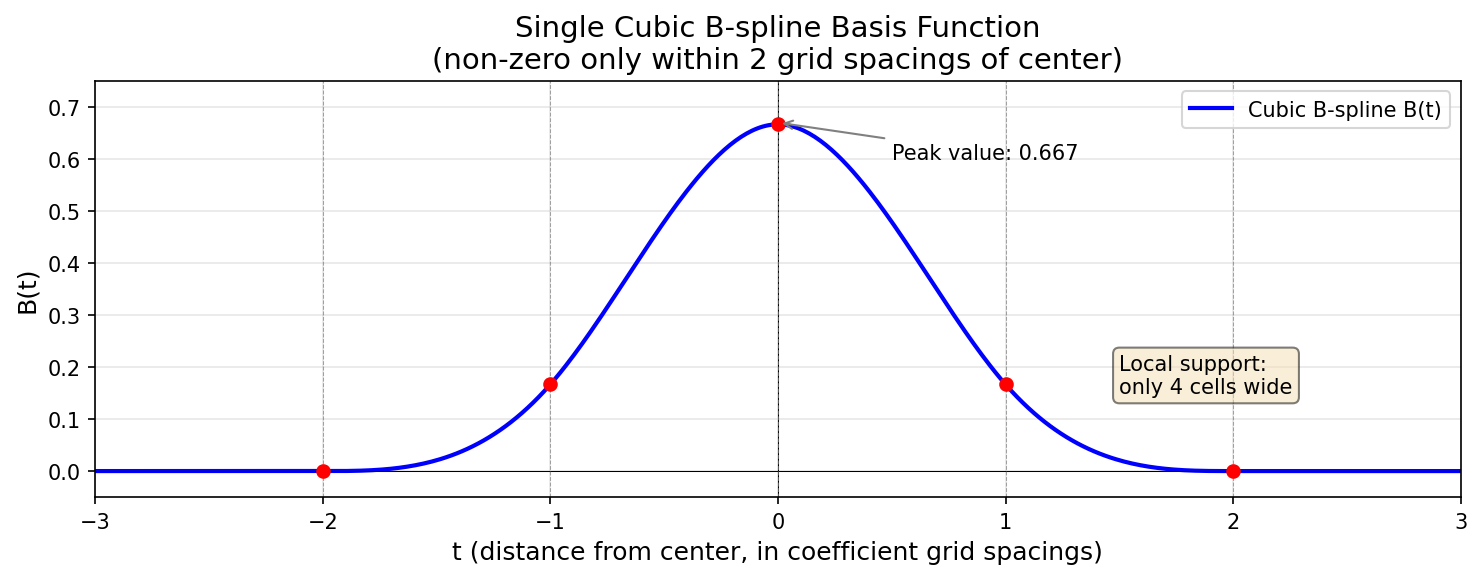

The B-spline Function

There is one function, the cubic B-spline, evaluated at a distance t from its center:

B(t) = (4 - 6|t|² + 3|t|³) / 6    for |t| < 1
    B(t) = (2 - |t|)³ / 6              for 1 ≤ |t| < 2
    B(t) = 0                           for |t| ≥ 2

The input t is the distance (in coefficient grid spacings) from the evaluation point to the B-spline center. This is the only function needed—every B-spline in the system is just this function evaluated at a different distance.

Coefficient Grid vs Output Grid

An important distinction: the B-spline centers sit on the coefficient grid, which is much coarser than the 0.01° output grid:

Observations from satellites and buoys fall at arbitrary lat/lon positions that are almost never aligned with the coefficient grid. Likewise, the 0.01° output grid points sit between coefficient grid centers. This is why the partition of unity property matters.

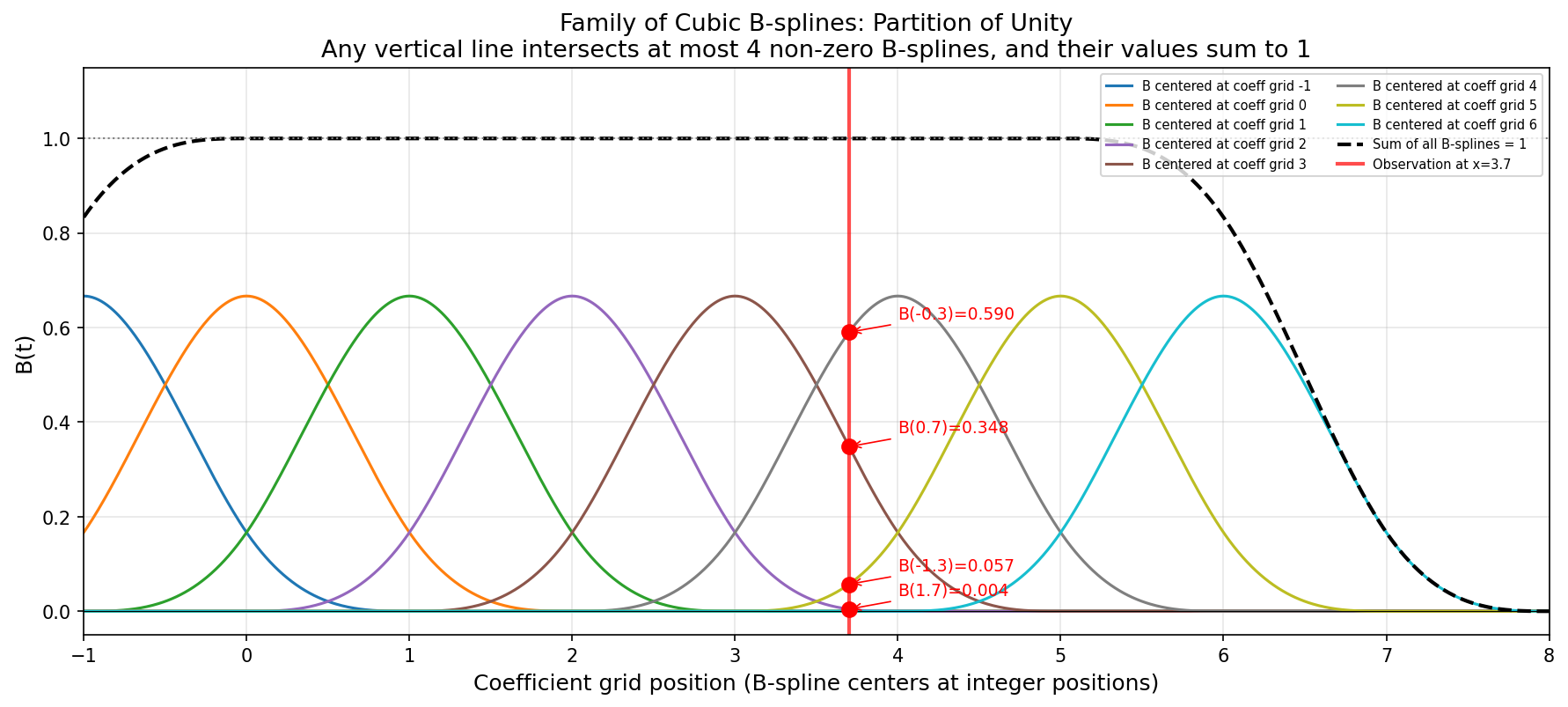

Partition of Unity

At any arbitrary position on the domain, the B-splines from the nearest coefficient grid points sum to exactly 1. This is visualized by drawing a vertical line anywhere on the family plot—it intersects at most 4 non-zero B-splines, and their values always sum to 1:

This property guarantees:

• No information is lost or invented when projecting observations onto the coefficient grid
• Constant fields are exact: if all coefficients equal 20°C, the field evaluates to exactly 20°C everywhere
• No systematic bias at positions between coefficient grid centers

How Observations Enter the System

When an observation at position x_obs is projected onto the coefficient grid, there is no "assignment" to a single grid point. Instead:

1. Compute floor(x_obs) to identify the 4 nearby coefficient grid points: floor(x_obs) + {-1, 0, 1, 2}
2. Compute the distance from x_obs to each of those 4 grid points
3. Evaluate the B-spline function B(distance) for each — these are the weights
4. The observation contributes to all 4 grid points simultaneously, proportional to these weights

Example: observation at coefficient grid position 3.7

      Grid point:  2       3       4       5
      Distance:    1.7     0.7     0.3     1.3
      B(distance): 0.005   0.348   0.590   0.057    (sum = 1.0)
                                     ↑
                              closest grid point gets
                              the largest weight

Due to the B-spline's symmetry, this is mathematically equivalent to centering a B-spline at the observation and evaluating it at each grid point. The floor operation is just bookkeeping to identify which 4 grid points are nearby—the B-spline function and distances do all the actual work.

In 2D, the same process applies independently in x and y (tensor product), affecting a 4×4 = 16-point neighborhood.

Field Reconstruction

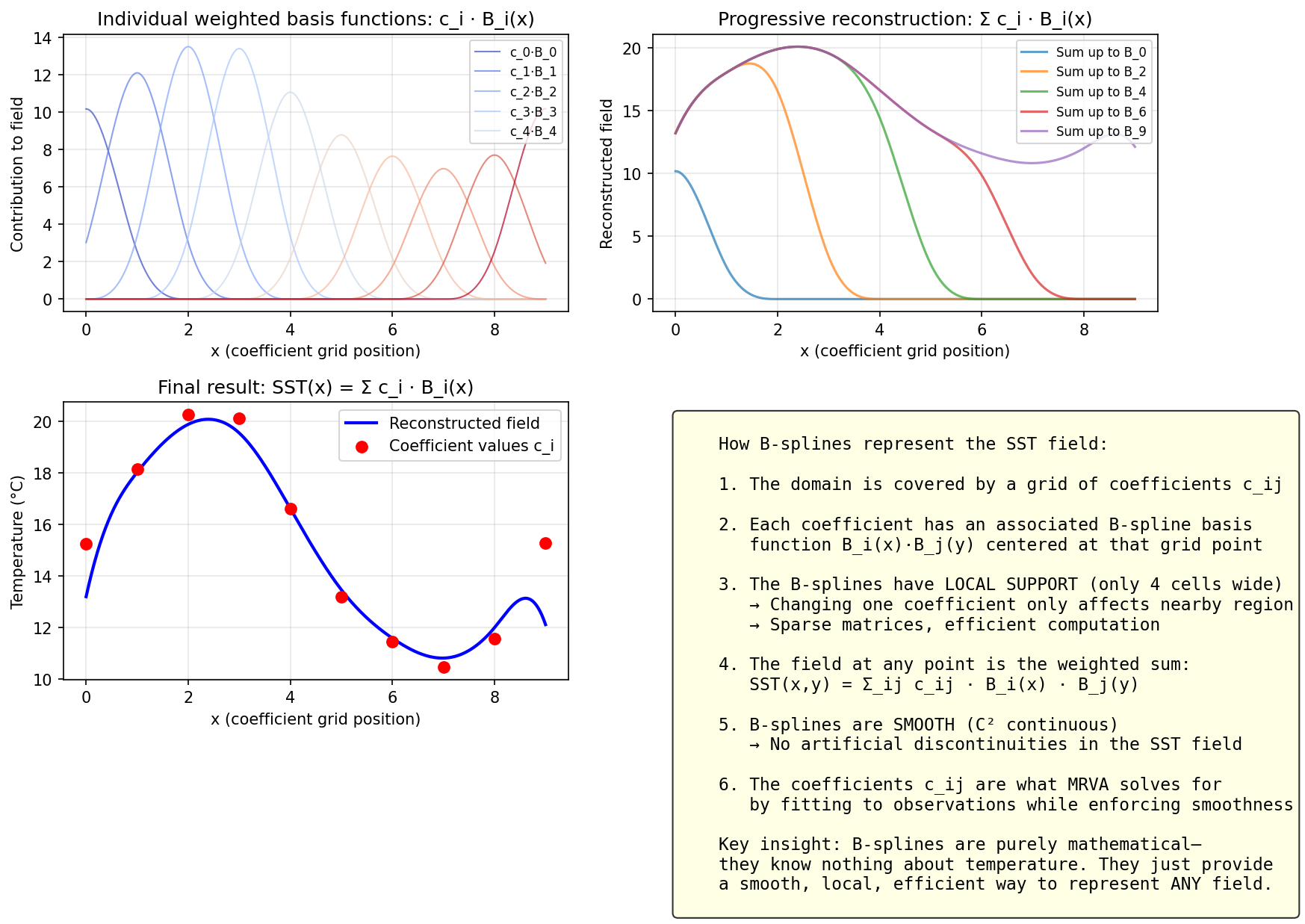

The coefficients c_ij determine the SST field. Each coefficient multiplies its associated basis function, and the sum produces the continuous field:

Multi-Scale B-splines

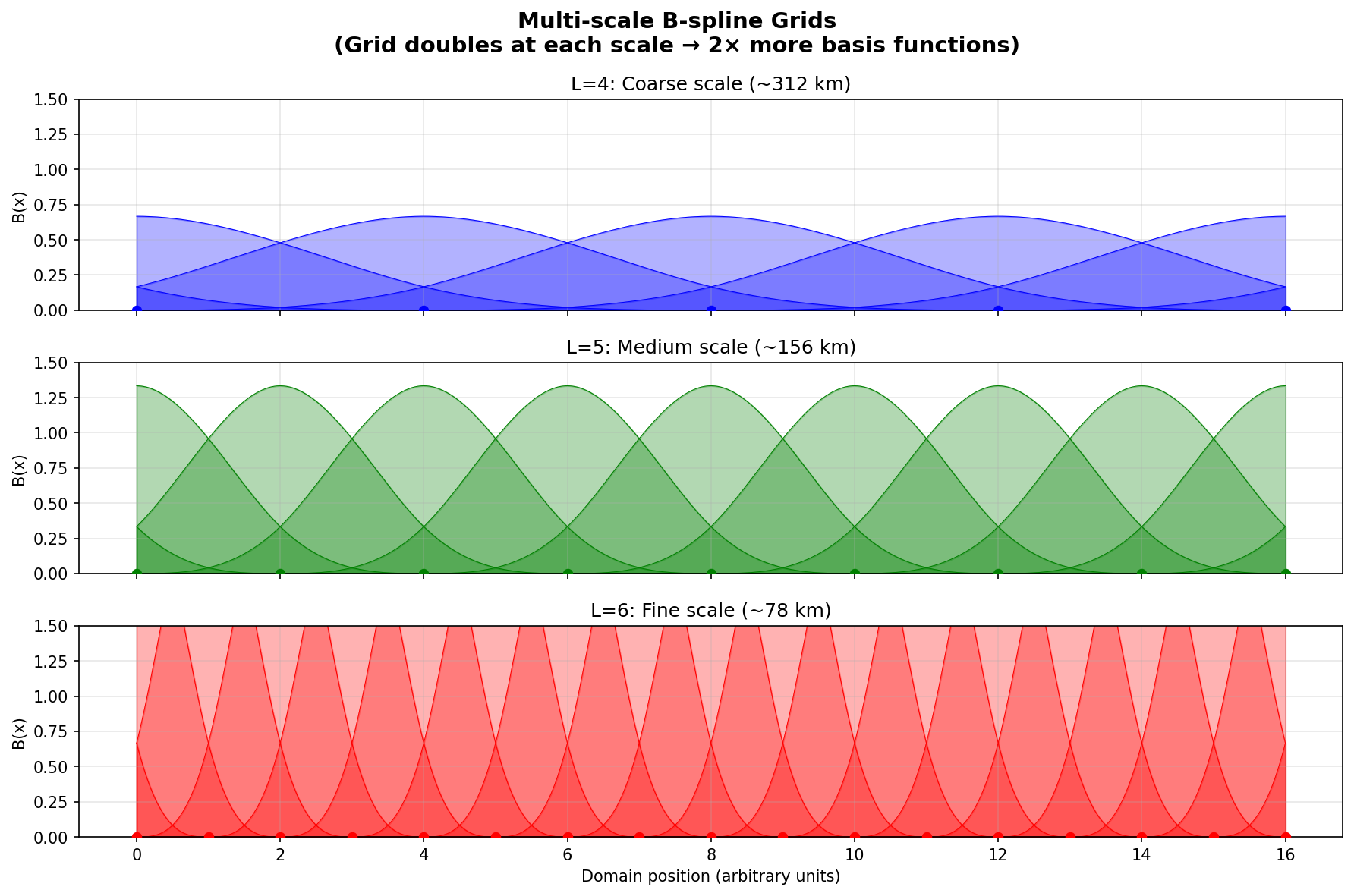

At each scale L, the coefficient grid spacing halves and the number of basis functions doubles:

This is the "wavelet-like" aspect of MRVA—the hierarchical multi-resolution structure—though the B-splines themselves are not wavelets (they don't have zero mean or the strict frequency localization properties of wavelets). The multi-resolution comes from the grid density, not from different basis function shapes.

Why B-splines (not wavelets)?

While MRVA's multi-resolution approach is inspired by wavelet analysis, it uses B-splines rather than true wavelets because:

1. Non-negativity: B-splines are always ≥ 0, simplifying physical interpretation
2. Interpolation: B-splines naturally interpolate between grid points
3. Simplicity: The tensor-product structure B(dx)·B(dy) is straightforward
4. Smoothness: Cubic B-splines provide C² continuity without oscillations

Wavelets (which oscillate and have zero mean) would require more complex handling for a physical field like SST that is inherently positive and smooth.

Mathematical formulation

Variational Problem

At each scale L, MRVA solves:

(A + R) c = b

    Where:
      A = Gram matrix of basis functions evaluated at observation locations
          (contains NO actual SST values—only geometric information about
           where observations constrain the solution)
      R = regularization term matrix (thin-plate smoothness penalty)
      c = coefficient vector (the unknowns we solve for)
      b = right-hand side vector (actual SST observations projected onto
          the basis functions—this is where measured values enter)

This is the Euler-Lagrange equation (normal equations) derived from minimizing the cost function J.

Important clarification: The matrix A does NOT contain observation values. It encodes the geometry of the observation configuration in coefficient space—specifically, products of basis functions evaluated at observation locations. The actual measured SST values appear only in the right-hand side vector b.

Data Term

For each observation (latitude, longitude, SST_obs, error, time):

1. Identify the 4×4 coefficient grid neighborhood around the observation
2. Compute distances from the observation to each of the 16 nearby coefficient grid points
3. Evaluate B(distance) for each — these are the basis weights
4. Accumulate contributions to the system matrix and right-hand side:

For each observation:

      combined_weight = (1/rms²) × exp(-(t/decay)²) × density_scaling
                        ├─────┘    ├───────────────┘   ├──────────────┘
                        error      temporal decay       rho (prevents dense
                        confidence (recent obs count     clusters from
                                   more)                dominating)

      For each of the 16 nearby coefficient grid points (i,j) and (k,l):

        dx_i = distance from obs to grid point i (in x)
        dy_j = distance from obs to grid point j (in y)

        b_ij   += B(dx_i) · B(dy_j) · SST_obs · combined_weight
                                       ↑
                                       ACTUAL MEASUREMENT
                                       (only place SST values appear)

        A_ij,kl += B(dx_i) · B(dy_j) · B(dx_k) · B(dy_l) · combined_weight
                   ↑                                ↑
                   products of B-spline distances   (NO SST values)

Multiple observations in the same grid cell are accumulated (summed), not averaged. The rho density scaling factor prevents clusters from having disproportionate influence:

density_scaling(i,j) = 1 / (rho × (count(i,j) - 1) + 1)

Where count(i,j) is the number of observations in that coefficient grid cell.

Key insight: The matrix A does NOT contain observation values. It encodes the geometry of the observation configuration—specifically, products of B-spline values based on distances to coefficient grid points. The actual measured SST values appear only in the right-hand side vector b.

Three Phases of the Algorithm

The full process has three distinct phases:

Phase 1 — Build the system (subroutine spmDataScale in spmm.f):

For each observation:
      compute distances to 4×4 coefficient grid neighborhood
      evaluate B(distance) for each grid point
      accumulate into A (basis products × weight) and b (basis × SST_obs × weight)

Phase 2 — Solve (PCG/SOR iterative solver):

(A + R) c = b  →  find optimal coefficients c

Phase 3 — Evaluate (output generation):

For each output grid point (0.01° spacing):
      compute distances to 4×4 coefficient grid neighborhood
      SST = Σ c_ij × B(dx_i) × B(dy_j)
      (No scaling factors — just coefficients × basis values)

The scaling factors (error weight, temporal decay, density correction) only exist in Phase 1. Phase 3 is purely coefficients multiplied by B-spline distance values.

Smoothness Regularization

The regularization term penalizes non-smooth solutions using thin-plate splines:

R = wx*S11⊗S00 + wy*S00⊗S11 + wxx*S22⊗S00 + wyy*S00⊗S22 + wxy*S11⊗S11

    Where:
      S00 = B-spline inner products (0th derivative)
      S11 = B-spline inner products (1st derivative)
      S22 = B-spline inner products (2nd derivative)
      ⊗   = tensor product (separable x,y application)

    Weights:
      wx, wy   = first derivative penalties (gradient smoothness)
      wxx, wyy = second derivative penalties (curvature smoothness)
      wxy      = cross-derivative penalty (prevent oscillations)

Latitude correction accounts for spherical geometry:

w_longitude(lat) = 1 / max(cos²(lat), 0.03)
    w_curvature(lat) = 1 / max(cos⁴(lat), 0.03)

This ensures isotropic smoothness in physical space despite lat-lon grid distortion near poles.

Scale-dependent regularization strength:

Regularization coefficient:
      c = 20  (L ≤ 8)   - Coarse/medium scales, moderate smoothing
      c = 40  (L ≥ 9)   - Fine scales, stronger smoothing to prevent overfitting

Spatial Density Weighting (Rho)

The rho weighting prevents dense data clusters from dominating:

rho = 0.8 * exp(-(45/2^L)/4.0)
    scaling(i,j) = 1 / (rho * (count(i,j) - 1) + 1)

    Where:
      count(i,j) = number of observations in grid cell (i,j)

Effect:

• Single observation in cell: scaling = 1.0 (full weight)
• N observations in cell: weight is shared, preventing over-influence
• As L increases (finer scales), rho → 0, reducing downweighting effect

Purpose: Ensure sparse regions aren't overwhelmed by data-rich areas.

Multi-scale processing flow

Detailed Algorithm

    flowchart TD
        START([Initialize MRVA]) --> CONFIG[Read configuration<br/>scales, sensors, parameters]
        CONFIG --> CHECKMODE{NRT or<br/>REA mode?}

        CHECKMODE -->|NRT| LOADBG[Load L=6 coefficients<br/>from previous day]
        CHECKMODE -->|REA| ZEROBG[Start from zero<br/>L0=2]

        LOADBG --> LOOPSTART{For L = L0 to LF}
        ZEROBG --> LOOPSTART

        LOOPSTART -->|L = L0| INITGRID[Initialize grid<br/>mx, my at L0]
        LOOPSTART -->|L > L0| DOUBLEGRID[Double resolution<br/>mx *= 2, my *= 2<br/>Upsample coefficients]

        INITGRID --> BUILDMAT[Build regularization matrix<br/>Thin-plate operator R]
        DOUBLEGRID --> BUILDMAT

        BUILDMAT --> CHECKBG{L == L0 and<br/>background?}
        CHECKBG -->|Yes| ADDBG[Add background field<br/>to system]
        CHECKBG -->|No| ADDOBS
        ADDBG --> ADDOBS

        ADDOBS[Incorporate observations<br/>Filter by La ≤ L ≤ Lb] --> WEIGHT[Apply weights:<br/>- Temporal decay<br/>- Rho scaling<br/>- Error weighting]

        WEIGHT --> PROJECT[Project to B-spline basis<br/>Build system matrix A, vector b]

        PROJECT --> SOLVE[Solve PCG:<br/>A + R c = b<br/>Tolerance: 1e-8 or 1e-3]

        SOLVE --> RESIDUAL[Compute residuals<br/>obs - analysis]

        RESIDUAL --> ACCUMULATE[Accumulate coefficients<br/>csp = dsp + csp]

        ACCUMULATE --> WRITECOEF[Write outputs:<br/>- mrva.cXX<br/>- mrva.uXX<br/>- map file]

        WRITECOEF --> NEXTSCALE[dsp := csp<br/>Prepare for next scale]

        NEXTSCALE --> CHECKLAST{L < LF?}
        CHECKLAST -->|Yes, L++| LOOPSTART
        CHECKLAST -->|No| SAMPLE[Sample at L=10<br/>~1km resolution]

        SAMPLE --> NETCDF[Generate NetCDF<br/>SST, error, mask]

        NETCDF --> END([Complete])

        style START fill:#90ee90
        style END fill:#90ee90
        style SOLVE fill:#ffb6c1
        style NETCDF fill:#87ceeb


Incremental Refinement

The algorithm operates in residual mode after the first scale:

    timeline
        title Multi-Scale Refinement Process
        section Coarse Scales (Basin-scale)
            L=2 (1250 km) : Fit large-scale features
                          : Basin-scale circulation
                          : All sensors contribute
            L=3 (625 km)  : Add gyre-scale details
                          : Major ocean currents
            L=4 (312 km)  : Add large eddies
                          : Mesoscale features
        section Medium Scales (Fronts)
            L=5 (156 km)  : Medium eddies
            L=6 (78 km)   : Thermal fronts
                          : NRT background field
            L=7 (39 km)   : Small fronts
            L=8 (19 km)   : Coastal features
                          : Buoys excluded (L>8)
        section Fine Scales (High-res)
            L=9 (10 km)   : Nearshore details
                          : Only high-res sensors
            L=10 (5 km)   : Product output
                          : 1km MUR SST
            L=11 (2.5 km) : Maximum detail
                          : Coefficient storage


Progression:

Scale L=2:  csp_2 ≈ SST observations (large-scale fit)
    Scale L=3:  csp_3 = csp_2 + corrections_3 (add medium-scale)
    Scale L=4:  csp_4 = csp_3 + corrections_4 (add mesoscale)
    ...
    Scale L=11: csp_11 = csp_10 + corrections_11 (finest details)

Each scale corrects the previous representation by adding finer-scale details.

What the scales mean

Scale-to-Resolution Mapping

The scale parameter L determines the grid spacing and effective resolution:

Grid doubling formula:

grid_spacing(L) = 45° / 2^L
    mx(L) = mx0 * 2^(L-L0)
    my(L) = my0 * 2^(L-L0)

Processing Range

Reanalysis (REA) mode:

• L0 = 2 (start from coarse scale, build from scratch)
• LF = 11 (compute to finest scale)
• Output at L = 10 (~1km product)

Near Real-Time (NRT) mode:

• L0 = 6 (initialize from previous day's L=6 coefficients)
• LF = 11 (refine to finest scale)
• Output at L = 10 (~1km product)

Why compute to L=11 but output at L=10?

• L=11 captures highest-frequency information
• L=10 provides optimal balance of resolution and noise
• L=11 coefficients stored for next day's NRT bootstrap

How observations enter

Scale-Dependent Sensor Usage (La/Lb Parameters)

Different sensors contribute at different scales based on their resolution:

    gantt
        title Sensor Usage Across Scales (La to Lb)
        dateFormat X
        axisFormat %L

        section Buoys (In-situ)
        IQUAM Buoys (La=2, Lb=8)    :buoy, 2, 7

        section Microwave
        AMSR2R ~25km (La=2, Lb=8)   :amsr, 2, 7

        section Infrared (High-res)
        MODISA ~1km (La=2, Lb=12)   :modisa, 2, 11
        MODIST ~1km (La=2, Lb=12)   :modist, 2, 11

        section Infrared (Medium-res)
        AVMTBG ~1-4km (La=2, Lb=9)  :avhrr, 2, 8

        section Ice Model
        Ice SST ~10km (La=2, Lb=9)  :ice, 2, 8


Sensor Parameters:

Design principles:

1. Prevent aliasing: Exclude coarse-resolution sensors at fine scales
   • AMSR2 (25km) not used at L>8 (19km grid spacing)
   • Prevents under-resolved features from degrading analysis
2. Multi-scale fusion: High-res sensors contribute across all scales
   • MODIS (1km) used from L=2 to L=12
   • Provides both large-scale and fine-scale information
3. Complementary coverage:
   • Microwave (AMSR2): all-weather, coarse resolution
   • Infrared (MODIS, AVHRR): cloud-limited, high resolution
   • In-situ (buoys): sparse, high accuracy
   • Ice: critical in polar regions

Multi-Sensor Advantages

By combining multiple sensors at appropriate scales:

• Gap filling: Infrared gaps (clouds) filled by microwave and buoys
• Consistency: Large-scale features constrained by all sensors
• Resolution: Fine-scale details from high-res sensors where available
• Validation: Cross-sensor consistency checks
• Robustness: No single sensor failure breaks the analysis

Outlier and bias handling

Before the final solve, observations are screened against a reference field built from the coarse scales, and a per-sensor bias correction is applied to the infrared instruments. The reference field is normally the analysis's own coarse-scale solution; a separate L4 product can serve as a bootstrap background when no prior coefficient exists at all.

Temporal weighting

Decay Parameters

Observations are weighted by their age relative to the analysis time:

weight = error * exp(-(t/decay)²)

    Where:
      t     = time offset from analysis time (hours)
      decay = temporal decay parameter (scale-dependent)

Scale-dependent decay times:

Example weight decay:

At L=11 (decay=12 hours):

• 0 hours old: weight = 1.00 (100%)
• 6 hours old: weight = 0.78 (78%)
• 12 hours old: weight = 0.37 (37%)
• 24 hours old: weight = 0.02 (2%)

Rationale:

• Coarse scales: Basin-scale features persist for days, use ±2 day window
• Fine scales: Small eddies and fronts evolve hourly, demand recent data

Temporal Window

Preprocessing components collect data over temporal windows:

• L2P satellites: ±2 days (5-day total)
• iQUAM buoys: ±3 days (7-day total)
• Ice concentration: Single day (analysis day)

Temporal decay weighting effectively narrows these windows at fine scales.

The solver

Preconditioned Conjugate Gradient (PCG)

The linear system (A + R)c = b is solved iteratively using PCG:

Algorithm:

1. Initialize: c = initial guess (upsampled from previous scale)
    2. Compute residual: r = b - (A + R)c
    3. Apply preconditioner: z = M^(-1) r
    4. Iterate until convergence:
       - Compute search direction
       - Line search for optimal step size
       - Update solution and residuals
       - Check convergence: ||r|| < tolerance

Preconditioner: Diagonal (Jacobi) scaling

M = diag(A + R)

Improves convergence by equilibrating the system.

Convergence tolerance:

• Coarse/medium scales (L < 9): ε = 1e-8 (strict convergence)
• Fine scales (L ≥ 9): ε = 1e-3 (relaxed, large system size)

Parallelization:

• Matrix-vector products: Parallel over grid points
• Reductions: Parallel summation with thread-safe accumulation
• Thread count: Typically 64 threads (configurable)

Computational Complexity

Grid size doubles at each scale:

L=2:  ~100 × 100     = ~10^4 unknowns
    L=5:  ~800 × 800     = ~6×10^5 unknowns
    L=8:  ~6,400 × 6,400 = ~4×10^7 unknowns
    L=11: ~51,200 × 51,200 = ~2.6×10^9 unknowns

Processing time scales roughly as:

• Grid size: O(N) where N = mx × my
• Iterations: Typically 10-50 iterations per scale
• Total: O(N × iterations) per scale

Most computational cost is at finest scales (L=9-11).

What the analysis writes

Coefficient Files (mrva.cXX)

Format: Binary, direct-access Fortran unformatted

Contents:

Record 1: mx, my, mz, nv  (grid dimensions, levels, variables)
    Record 2: xmin, xmax, ymin, ymax  (domain bounds)
    Record 3: csp(coeffSize)  (coefficient array)

    Where:
      coeffSize = (mx+3-cix) * (my+3) * mz * nv
      cix = 3 (cyclic boundary in longitude)

Coefficient array:

• Extended grid: Includes ghost cells for B-spline support
• Cyclic longitude: Enables wrap-around at date line
• Stored for scales L=2 through L=11

Usage:

• NRT mode: L=6 coefficients initialize next day's analysis
• REA mode: All scales stored for archival
• Output generation: L=10 sampled for 1km product

Uncertainty Files (mrva.uXX)

Format: Same structure as coefficient files

Contents: Approximation of posterior variance

u(i,j) ≈ 1 / diagonal(Hessian)

Physical meaning:

• Smaller values: High confidence (many observations, strong constraints)
• Larger values: Low confidence (sparse data, weak constraints)

Usage in final product:

• Read at scale L=8 (medium resolution for smoothness)
• Scaled to target range (e.g., min=0.3°C, mean=0.5°C)
• Output as analysis_error field in NetCDF

NetCDF Output

File: <DATE>090000-JPL-L4_GHRSST-SSTfnd-MUR-GLOB-v02.0-fv04.1.nc

Key variables:

• analysed_sst: Sea surface temperature (K)
• analysis_error: Estimated error (K)
• mask: Land/ice/sea classification
• sea_ice_fraction: From OSI-SAF (0-1)
• dt_1km_data: Distance to nearest high-res observation (km)

Metadata:

• GHRSST L4 compliant
• CF-1.6 conventions
• Comprehensive global attributes (processing parameters, references)

Grid: 0.01° × 0.01° (approximately 1km at equator)

Further reading

The published description of the method:

• Chin, T. M., Vazquez-Cuervo, J., and Armstrong, E. M. (2017). “A multi-scale high-resolution analysis of global sea surface temperature.” Remote Sensing of Environment, 200, 154–169.

The MATLAB and Fortran that implement it are described in MRVA internals.
